405nm拉曼激光器
405nm拉曼激光器
NBET-III-400/405/410/415
VIOLET DIODE LASER AT 400/405/410/415nm
Violet diode laser module at 400/405/410/415nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.

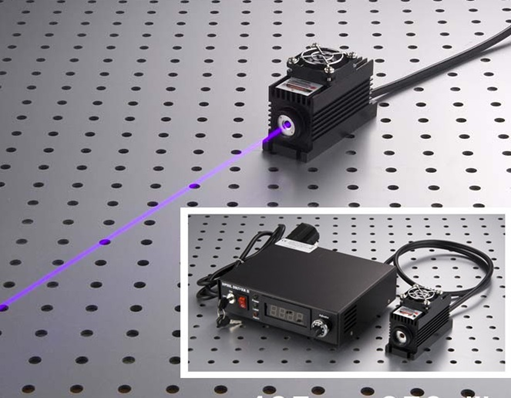

產品圖片
技術參數
|
Model |
NBET-III-400 |
NBET-III-405 |
NBET-III-410 |
NBET-III-415 |
|
|
Wavelength (nm) |
400±5 |
405±5 |
410±5 |
415±5 |
|
|
Operating mode |
CW |
||||
|
Outputpower(mW) |
>1,2,3, …,300 |
>1, 2, 3, …,500 |
>1, 2, 3, …,300 |
>1, 2, 3, …,300 |
|
|
Power stability (rms, over 4 hours) |
<1%, <3%, <5% |
||||
|
Transverse mode |
Near TEM00 |
||||
|
M2 factor |
<1.5 (<1.2, optional) |
||||
|
Beam diameter at the aperture (1/e2,mm) |
~2.5 (~1. 0, optional) |
||||
|
Beam divergence, full angle (mrad) |
0.5 |
||||
|
Polarization ratio |
>50:1(>100:1,optional)Horizontal±5degree(VerticalOptional) |
||||
|
Warm-up time (minutes) |
<5 |
||||
|
Pointing stability after warm-up (mrad) |
<0.05 |
||||
|
Beam height from base plate (mm) |
24.8 |
||||
|
Operating temperature (℃) |
10~35 |
||||
|
Power supply (85-264VAC) |
PSU-III-LED/ PSU-III-FDA |
||||
|
TTL / Analog modulation |
TTLorAnalogwith1Hz-1KHz1KHz-10KHz,10KHz-30KHzoptional |
||||
|
Expected lifetime (hours) |
10000 |
||||
|
Warranty |
1 year |
||||
選型指南
|
NBET-FN-360nm |
360nm半導體激光器，數顯可調。 |
|
NBET -III-400/405/410/415nm |
400nm半導體激光器，數顯可調。 |
|
NBET-III-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-F-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-FN-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-D-785nm |
785nm半導體激光器，數顯可調。 |
|
NBET-III-1064nm |
1064nm半導體激光器，數顯可調。 |
